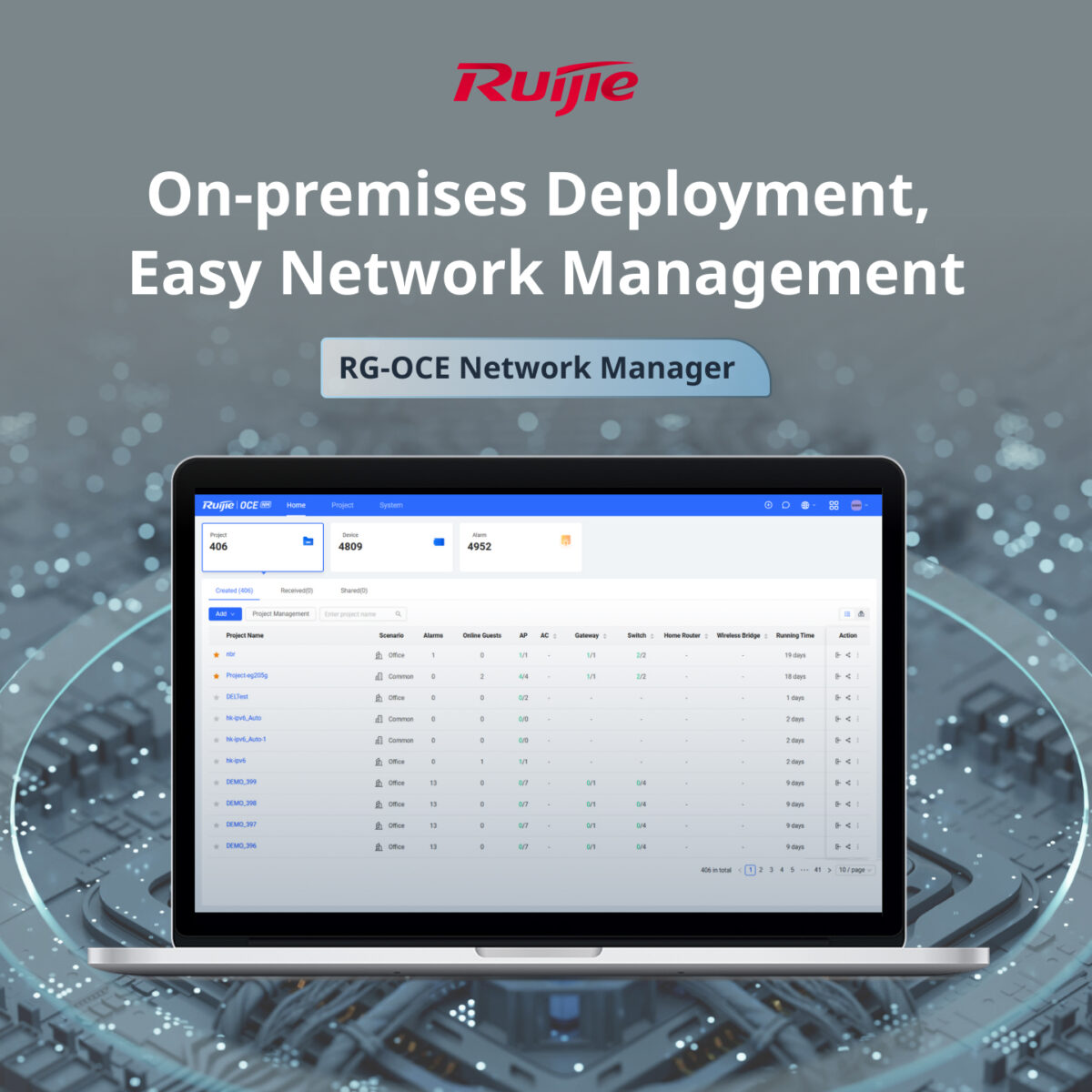

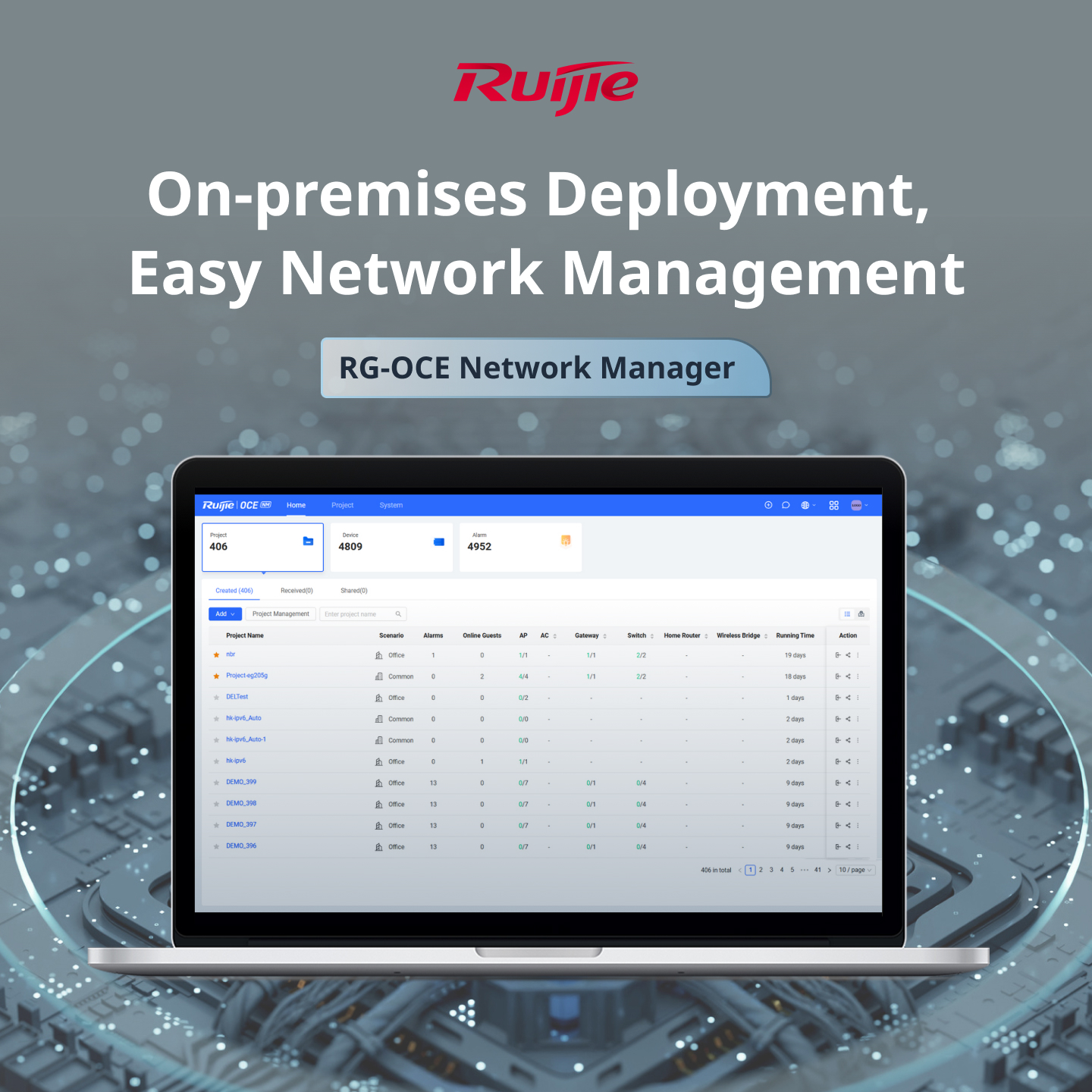

Ruijie Network Manager License RG-OCE-NETWORK-LIC-500
Rp576.981.330
RG-OCE Network License for 500 Devices (Lifetime): Management of up to 500 devices throughout the software lifecycle, including both Ruijie and third-party devices.
Deskripsi
RG-OCE Network License for 500 Devices (Lifetime): Management of up to 500 devices throughout the software lifecycle, including both Ruijie and third-party devices.
| Specifications | RG-OCE Network Manager |
| Deployment Mode: | |
| Single-Tenant (for on-premises deployment) | √ |
| Multi-Tenant (fo private/cloud deployment) | √ |
| Network Planning: | |
| Location Planning (Google Map) | √ |
| AP Layout Planning | √ |
| Auto-configured Wired/Wireless Network | √ |
| Wireless Configuration: | |
| SSID Configuration | √ |
| RF Configuration | √ |
| Captive Portal Configuration | √ |
| 802.1X Authentication | √ |
| Client-based Bandwidth Limit | √ |
| AP Mesh | √ |
| Layer2/Layer 3 Roaming | √ |
| Client-based Blocklist/Allowlist | √ |
| Switch Configuration: | |
| Interface & VLAN Configuration | √ |
| Voice VLAN | √ |
| 802.1X Configuration | √ |
| DHCP Snooping | √ |
| ACL Policy | √ |
| Loop Prevention, Port Protection | √ |
| Storm Control, IP Source Guard | √ |
| Router/Gateway Configuration: | |
| Interface and VLAN Configuration | √ |
| Multi-WAN and Load Balancing | √ |
| Routing (Static Routing/PBR) | √ |
| QoS & App/URL Block | √ |
| DDNS Configuration | √ (Ruijie DDNS Not Supported) |
| Captive Portal Authentication | √ |
| PPPoE Server | √ |
| VPN (L2TP/IPsec/PPTP/OpenVPN) | √ |
| Monitoring: | |
| Global View (Dashboard) | √ |
| Network Health Insight | √ |
| Egress Traffic Overview | √ |
| Wi-Fi Health Monitoring | √ |
| Device & Client List | √ |
| Maintenance & Optimization: | |
| Firmware Upgrade | √ |
| Delivery Report | √ |
| Auto RF Planning & Scheduled Optimization | √ |
| Specifications | RG-OCE Network Manager |
| VLAN Visualization | √ |
| Operation/Configuration Logs | √ |
| Alarm Notification | √ |
| System Management: | |
| Tenant Management | √ |
| Role-based Privilege Management (Sub-account) | √ |
| License Management | √ |
| Account Language Support | √ |
| Support: | |
| Online RITA Support | √ |
Supported Models
| Series | Models |
| AP/AC | AP8xx-L, AP6xx-L Series; AP680(CD), AP720-L, AP180, AP180P-L;
RAP73HD, RAP73 Pro, RAP72-Wall, RAP72 Pro, RAP62-OD, RAP6262, RAP6262(H), RAP6262(H)-D RAP6260(H), RAP6260(H)-D, RAP2260(H), RAP2260(E), RAP2260, RAP1260, RAP1261, RAP1200(P); WS6000 Series |
| Switches | CS88, CS86, CS85, CS83, S2915-L Series;
NBS7000, NBS6000, NBS5500, NBS5300 NBS5200, NBS5100, NBS3300, NBS3200, NIS3100 Series; |
| Routers | NBR6120-E, NBR6205-E, NBR6210-E, NBR6215-E,
EG1510XS, EG310GH-P-E, EG310GH-E, EG305GH-P-E |
System Requirements
| Number of Managed Devices | CPU | Memory | Hard Disk Drive | Operating System |
| < 100 | 4-core (Intel Xeon processors, 2 GHz or higher) | 24 GB | 150GB SSD | Rocky or Redhat Linux 8.10 |
| 100 to 1000 | 4-core (Intel Xeon processors, 2 GHz or higher) | 32 GB | 200GB SSD | Rocky or Redhat Linux 8.10 |
| 1,000 to 5,000 | 8-core (Intel Xeon processors, 2 GHz or higher) | 64 GB | 500GB SSD | Rocky or Redhat Linux 8.10 |
| 5,000 to 10,000 | 16-core (Intel Xeon processors, 2 GHz or higher) | 128 GB | 1TB SSD | Rocky or Redhat Linux 8.10 |
| > 10,000 | Contact Ruijie sales representative for service deployment requirements. | |||
