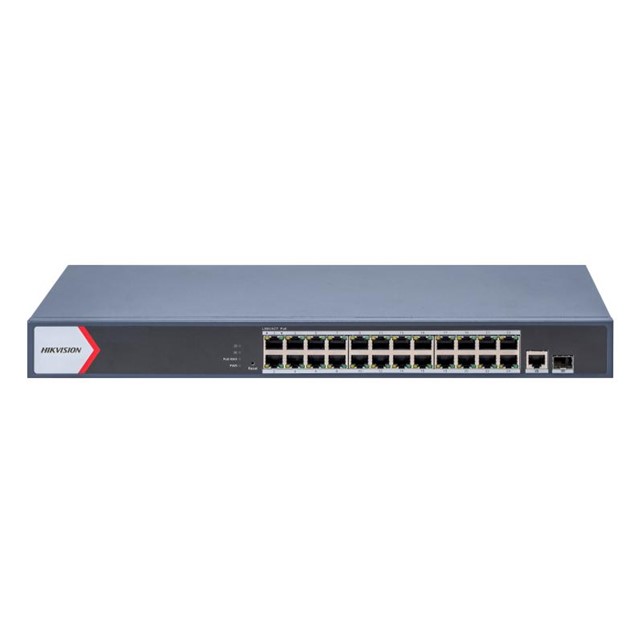

HikVision 24 Port Gigabit Smart POE Switch (DS-3E1526P-EI)
Rp6.287.077
- 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
- Total PoE power budget 370 W
- Network topology at your fingertips
- Up to 300 m long-range PoE transmission
- 6 kV surge protection
Deskripsi
Spesifikasi :
| Shell | Metal material |
| Net Weight | 3.1 kg (6.83 lb) |
| Gross Weight | 3.3 kg (7.27 lb) |
| Dimensions | 440.0 mm × 220.8 mm × 44.0 mm (17.32” × 8.69” × 1.73”) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | 40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 V AC, 50/60 Hz, Max. 6.3 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 400 W |
| Power Consumption in Idle | 20 W |
| Surge Protection | 6 KV |
| Port | 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| Power supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 370 W |
| Long Range |
Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
